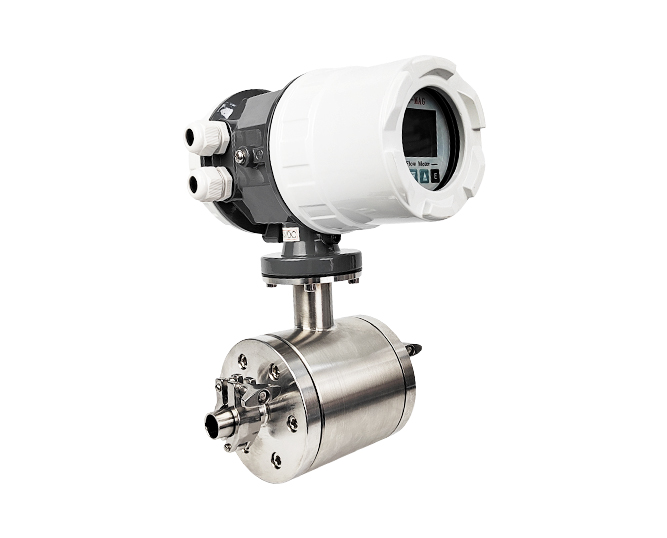

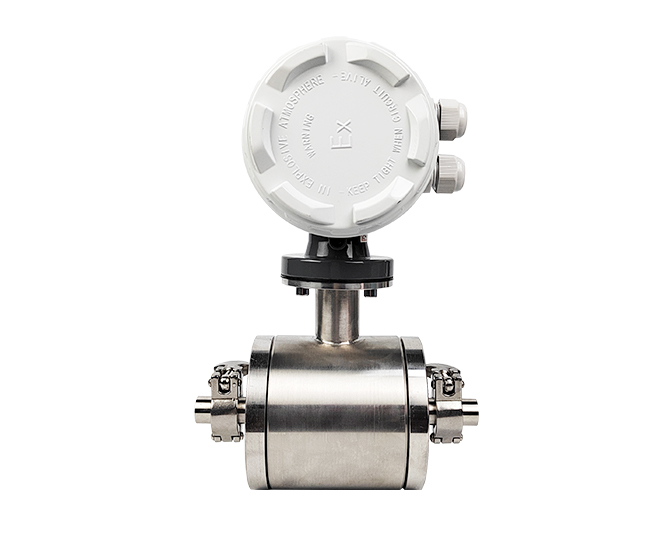

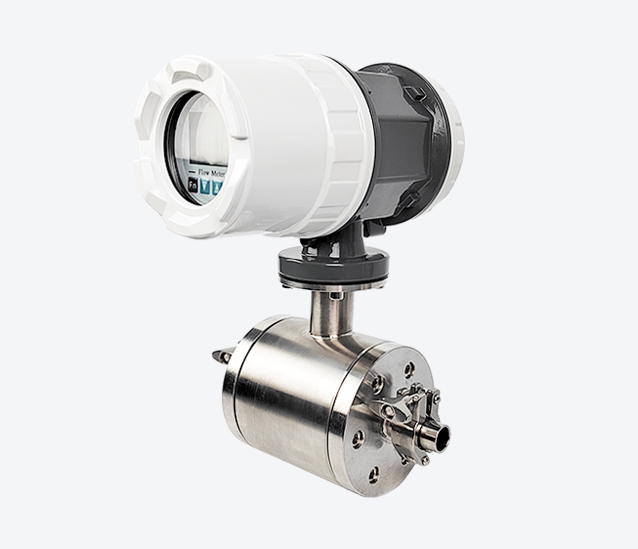

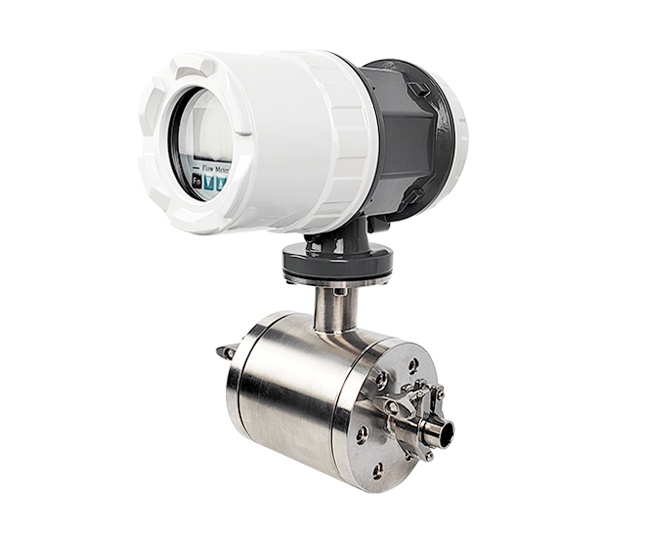

The Sanitary Electromagnetic Flow Meter is specifically designed for food, beverage, dairy, pharmaceutical, and biotech applications, where cleanliness, precision, and safety are critical.Constructed from food-grade stainless steel (304/316L) with a hygienic liner, the meter fully complies with FDA, EHEDG, and 3A sanitary standards.
1.Food-Grade Materials:
Full 304/316L stainless steel construction with PTFE, PFA, or polyurethane liners compliant with FDA regulations.2.Hygienic Connections:
Available with tri-clamp, sanitary thread, or flange connections for quick installation and easy cleaning.3.CIP/SIP Compatible:
Withstands steam sterilization and chemical cleaning, meeting stringent pharmaceutical and food production requirements.4.Polished Surface Finish:
Mirror-polished wetted parts minimize residue buildup and bacterial growth.5.Multiple Output Options:
Supports 4–20 mA, pulse, RS485, and HART communication for seamless integration into automated control systems.6.No Moving Parts
Ensures no pressure loss or contamination, preserving fluid quality and process purity.
Milk, juice, beer, wine, mineral water, syrup.
Whey, cream, yogurt, and milk processing.
Drug solutions, purified water, injection water, biopharmaceutical liquids.
Cell culture media, fermentation broth, nutrient solutions.
|
Configuration |
Option |
Description |
|
Nominal Diameter |
DN10 – DN150 |
Standard sizes for sanitary pipelines |
|
Material |
304 / 316L Stainless Steel |
Food-grade contact materials |
|
Liner Material |
PTFE / PFA / Polyurethane |
FDA-approved, resistant to cleaning agents |
|
Connection Type |
Tri-clamp / Sanitary Thread / Hygienic Flange |
Easy disassembly for CIP/SIP |
|
Output Signal |
4–20 mA / Pulse / RS485 / HART |
Compatible with automation systems |
|
Protection Level |
IP65 / IP67 / IP68 |
Suitable for washdown environments |
|
Power Supply |
AC220V / DC24V |
Standard industrial power options |
|
Explosion-Proof Option |
Ex ia / Ex d (Optional) |
For use in pharmaceutical cleanrooms |
|
Accuracy Class |
±0.5%R (Standard) / ±0.2%R (High Accuracy) |
Suitable for precise batching and dosing |
|
Parameter |
Typical Value |
Description |
|
Flow Velocity Range |
0.1 – 15 m/s |
Suitable for hygienic process fluids |
|
Accuracy |
±0.5%R / ±0.2%R |
High precision for metering and blending |
|
Temperature Range |
-20°C ~ +120°C (Standard); up to 150°C for CIP |
Withstands sterilization conditions |
|
Pressure Rating |
1.0 / 1.6 / 2.5 MPa |
Compatible with common process lines |
|
Protection Level |
IP65 / IP67 / IP68 |
Washdown and moisture-resistant |
|
Certification |
3A / EHEDG / FDA / CE |
Compliant with international sanitary codes |
