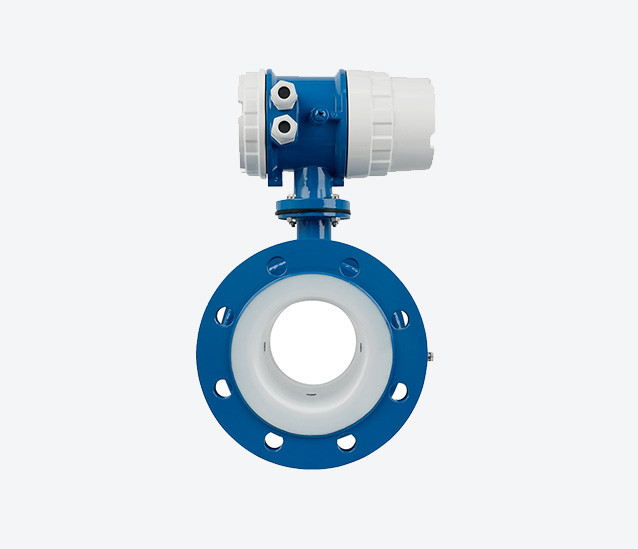

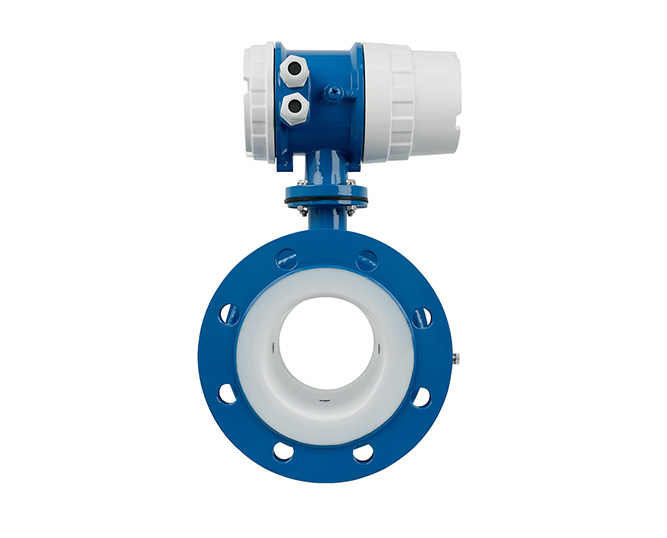

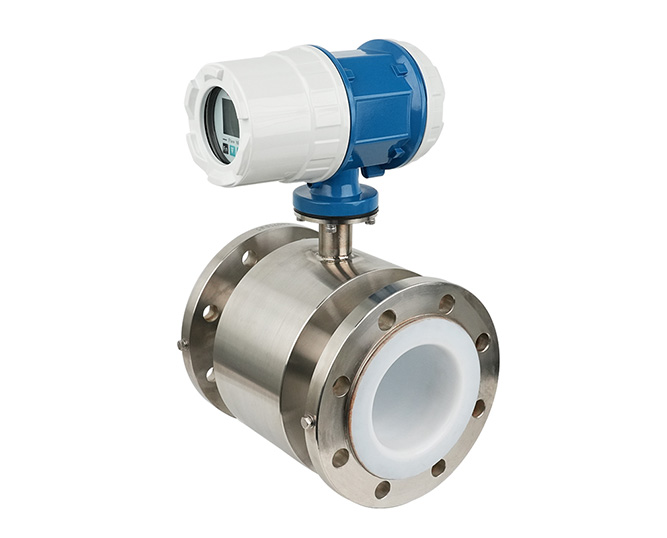

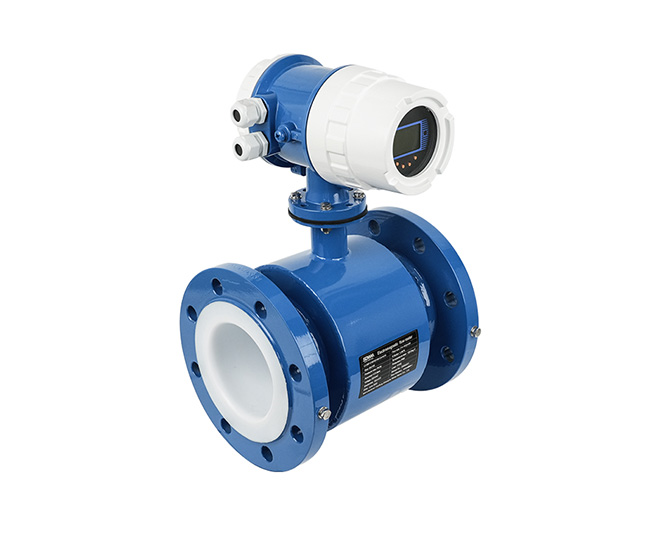

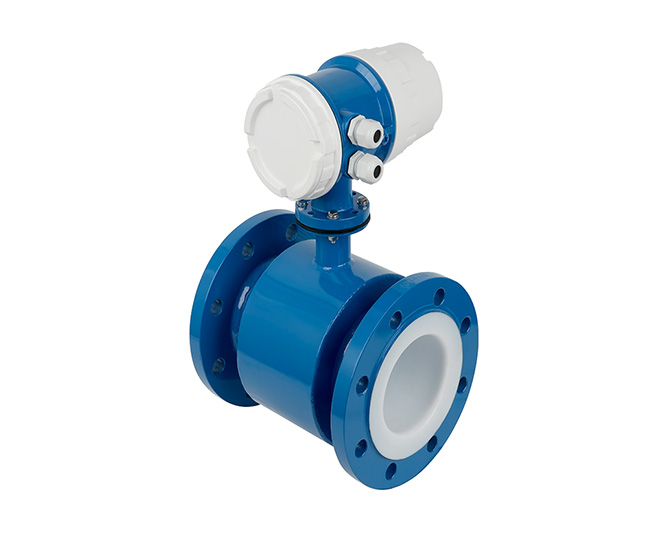

The electromagnetic flow meter is a universal full-bore type flow measurement instrument that operates based on Faraday’s law of electromagnetic induction. It is the most common configuration and is designed for measuring conductive liquids such as water, wastewater, chemical solutions, and slurries. This model features high cost-performance, easy installation, and stable measurement, making it a reliable choice for general industrial and municipal applications.
Versatile Applications:
Suitable for most conductive liquids; widely used in petrochemical, chemical, and water treatment industries.High Accuracy:
Standard accuracy up to ±0.5%R, with optional ±0.2%R high-precision models.Multiple Lining Options:
Rubber, PTFE, or polyurethane linings available to match different media.Flexible Output Signals:
Supports 4-20 mA, pulse, RS485/Modbus, and HART protocols.ugged Structure:
Fully welded body with protection levels ranging from IP65 to IP68.Low Maintenance:
No moving mechanical parts, reducing wear and extending service life.
Acid and alkali solutions, cooling water, and process wastewater.
Conductive slurries and corrosive chemical liquids.
Inlet and outlet monitoring in sewage treatment plants.
Pipeline networks in petrochemical installations.
|
Configuration |
Options |
Description |
|
Nominal Diameter |
DN10 ~ DN3000 |
Covers standard process pipeline sizes |
|
Lining Material |
Rubber, Polyurethane, PTFE |
Rubber for water/wastewater; PTFE for corrosive media |
|
Electrode Material |
316L SS, Titanium-coated SS, Hastelloy, Tantalum |
Selected according to corrosion resistance needs |
|
Output Signal |
4-20 mA / Pulse / RS485 / HART |
Compatible with PLC/SCADA integration |
|
Protection Class |
IP65 / IP67 / IP68 |
For indoor, outdoor, or underground installations |
|
Power Supply |
AC220V / DC24V |
Standard industrial power inputs |
|
Installation |
Flange connection |
Reliable sealing, easy installation |
|
Accuracy |
±0.5%R (standard) / ±0.2%R (high precision) |
Meets different process requirements |
|
Parameter |
Value |
Description |
|
Flow Velocity Range |
0.05 ~ 10 m/s |
Suitable for common liquid flow rates |
|
Accuracy |
±0.5%R (standard) / ±0.2%R (high precision) |
Meets industrial and petrochemical standards |
|
Temperature Range |
-20℃ ~ +120℃ (PTFE lining) |
Covers most process conditions |
|
Pressure Rating |
1.0 MPa / 1.6 MPa / 2.5 MPa |
Standard petrochemical process ratings |
|
Protection Class |
IP65 / IP67 / IP68 |
Supports various installation environments |
|
Communication |
Pulse / 4-20 mA / RS485 / HART |
Compatible with automation systems |
|
Power Supply |
AC220V / DC24V |
Standard factory supply options |
