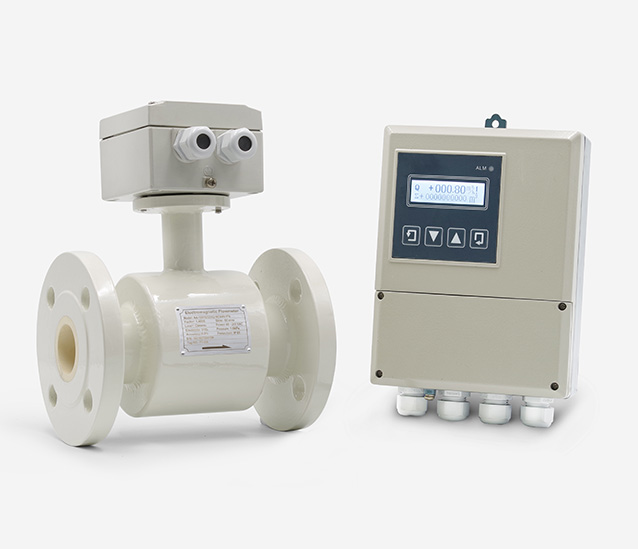

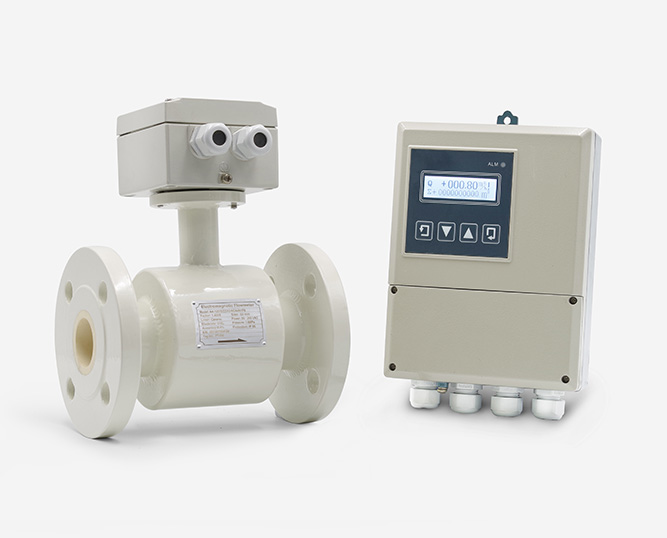

The high temperature electromagnetic flow meter is designed for accurate measurement of conductive liquids under elevated temperatures. Featuring high-temperature-resistant lining materials (such as PFA and ceramic) and robust electrodes, this model is coupled with a remote-type transmitter to isolate sensitive electronics from heat. It operates reliably at medium temperatures up to 180℃–200℃, making it an ideal solution for petrochemical, metallurgy, chemical, and power industries where hot fluids and corrosive environments are common.
High-Temperature Design:
Equipped with PFA or ceramic lining, capable of handling media up to 200℃.Remote Transmitter Structure:
Sensor and converter are separated to protect electronics from thermal influence.Stable Measurement:
Maintains ±0.5%R accuracy even under temperature fluctuations and high-heat conditions.Multiple Output Options
Supports 4-20 mA, pulse, RS485/Modbus, and HART for integration with PLC/DCS.Corrosion Resistance:
Designed for both high-temperature and corrosive fluids such as acids, alkalis, steam condensate, and hot brine.Versatile Application:
Suitable for both hot chemical liquids and slurries containing small amounts of solid particles.
High-temperature acid/alkali solutions, hydrocarbon fluids, steam condensate monitoring.
Hot brine and corrosive chemical solutions.
High-temperature cooling water, boiler feed water, and thermal process fluids.
Process liquids requiring sterilization at elevated temperatures.
|
Configuration |
Options |
Description |
|
Nominal Diameter |
DN10 ~ DN600 |
Covers standard process pipelines |
|
Temperature Range |
≤150℃ / ≤180℃ / ≤200℃ |
Selected based on medium temperature |
|
Lining Material |
PFA, F46, Ceramic |
PFA/F46 for chemical liquids, ceramic for high-temp corrosive media |
|
Electrode Material |
316L SS, Hastelloy, Tantalum, Platinum-Iridium |
Based on corrosion and temperature conditions |
|
Output Signal |
4-20 mA / Pulse / RS485 / HART |
Supports system integration |
|
Protection Class |
IP65 / IP67 / IP68 |
Selected according to installation site |
|
Transmitter Type |
Integral / Remote (recommended) |
Remote preferred for high-temperature applications |
|
Power Supply |
AC220V / DC24V |
Standard industry supply |
|
Accuracy |
±0.5%R (standard) / ±0.2%R (high precision) |
Meets process control needs |
|
Parameter |
Value |
Description |
|
Flow Velocity Range |
0.05 ~ 10 m/s |
Standard liquid measurement range |
|
Accuracy |
±0.5%R / ±0.2%R |
Ensures reliable results for process control |
|
Temperature Range |
≤150℃ (standard) / ≤200℃ (high-temp) |
According to selected lining and design |
|
Pressure Rating |
1.0 / 1.6 / 2.5 MPa |
Higher ratings available on request |
|
Protection Class |
IP65 / IP67 / IP68 |
For indoor, outdoor, and underground installation |
|
Communication |
Pulse / 4-20 mA / RS485 / HART |
Compatible with automation systems |
|
Power Supply |
AC220V / DC24V |
Flexible installation |
