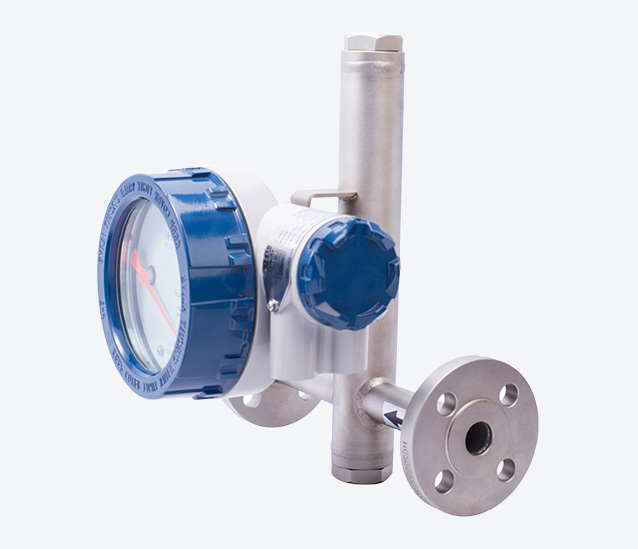

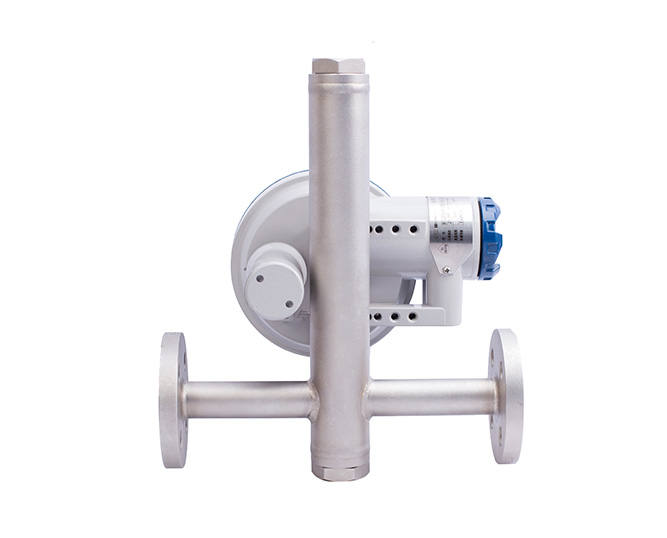

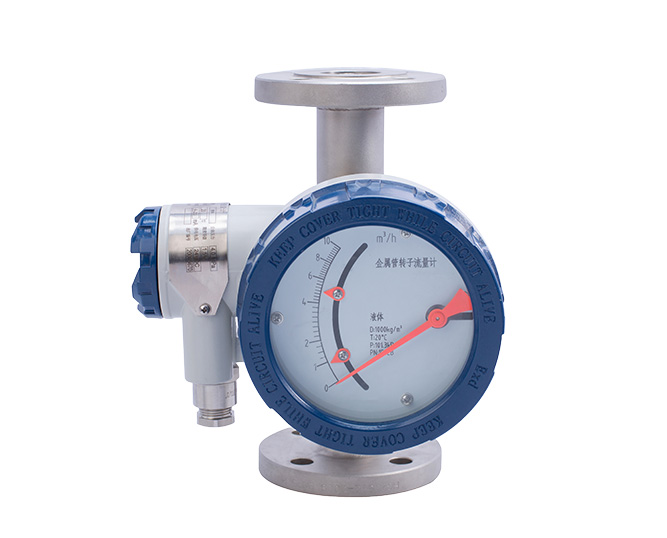

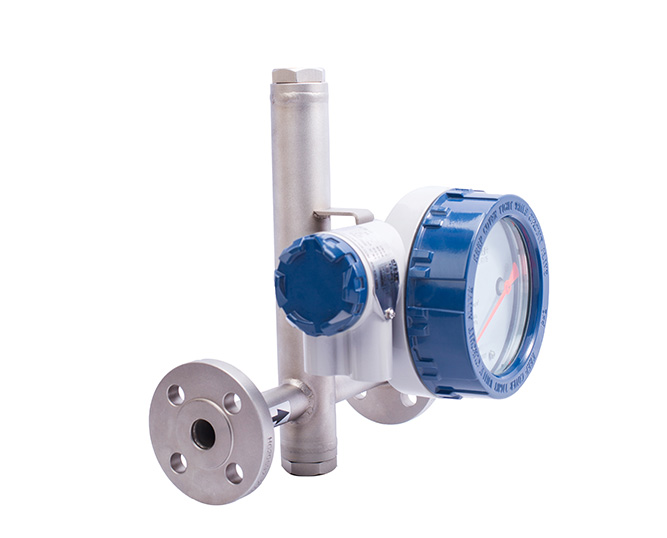

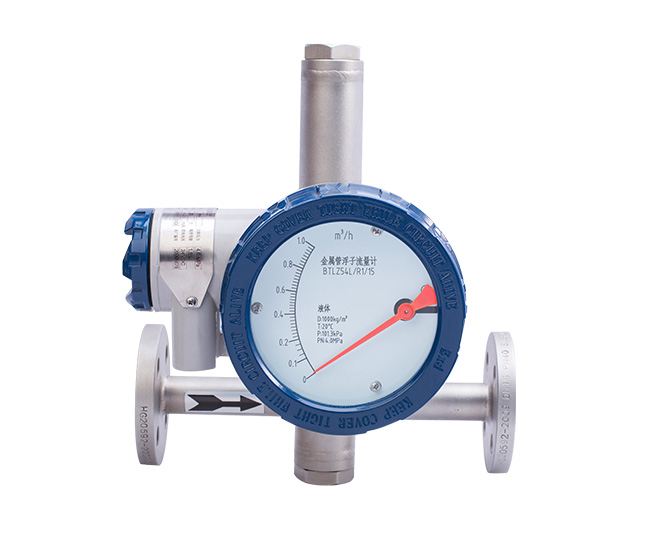

The Mechanical Metal Variable Area Flow Meter, also called mechanical rotameter, is a simple and reliable device for measuring liquid and gas flow rates in pipelines. Unlike digital rotameters with electronic transmitters, the mechanical type provides direct local indication through a pointer and scale, without requiring external power supply.
This makes it especially suitable for applications where on-site flow reading is needed, and where cost efficiency, durability, and simplicity are key requirements.
No power supply required
mechanical indication onlyDurable metal tube design
stainless steel or alloy constructionClear local reading
pointer + scale for easy monitoringWide measuring range for water, oil, compressed air, steam, and industrial gases
Robust design
suitable for medium and high pressure pipelinesEasy installation
flange or threaded connections available
Water supply and treatment plants
Industrial compressed air monitoring
Oil and chemical flow measurement
Food & beverage industry (with sanitary versions)
Steam pipelines and boiler systems
|
Measuring range |
Liquid,0.1–20,000 L/h; Gas,0.1–400 m³/h |
|
Accuracy |
±2.5% F.S. (standard mechanical version) |
|
Working pressure |
up to 16 MPa (higher pressure optional) |
|
Temperature range |
-80°C to +220°C |
|
Connection |
Flange, thread, sanitary clamp |
|
Material |
Stainless steel 304/316L, or special alloys |
|
Display |
Local mechanical pointer only (no electronic output) |
