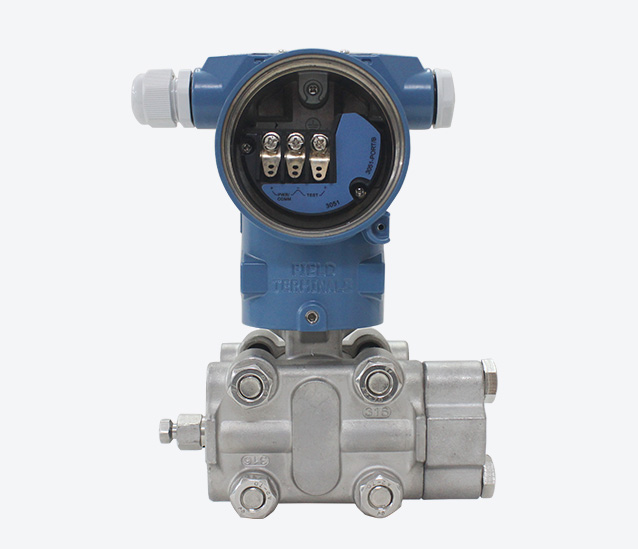

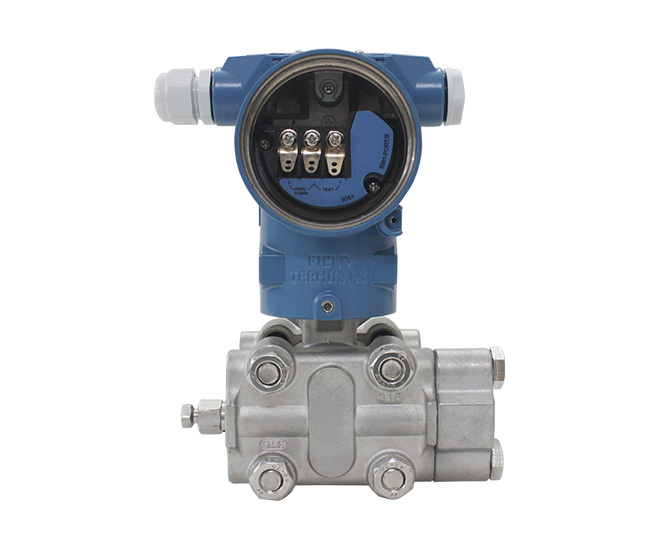

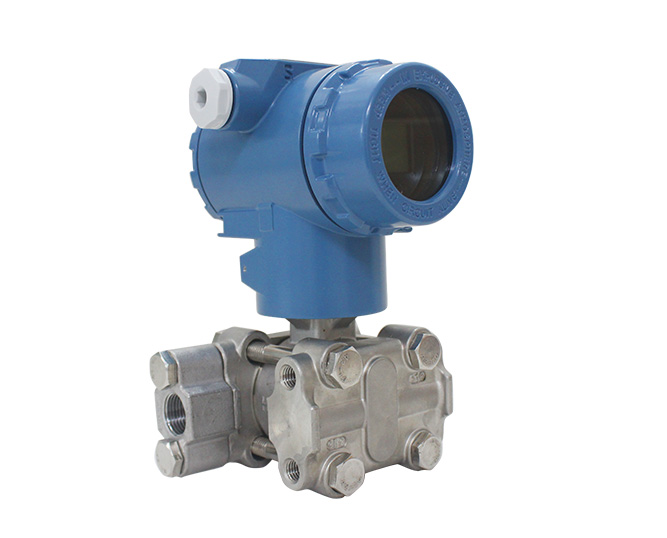

Henan Panda’s pressure and differential pressure transmitters are designed to deliver high-precision and stable measurement of liquid, gas, and steam applications. With advanced sensor technology, our transmitters can convert pressure variations into standardized output signals, ensuring reliable data for process monitoring and control systems.
Differential pressure transmitters measure the difference between two pressure points, while pressure transmitters measure absolute or gauge pressure. Both are widely used in flow, level, and pressure monitoring in industrial automation.
High accuracy and long-term stability
Compact and robust design for harsh environments
Wide measuring range with multiple pressure options
Digital and analog output (4–20mA, HART, Modbus)
Easy installation and calibration
Water and wastewater treatment
Oil and gas pipelines
Chemical and petrochemical plants
Power generation systems
HVAC and energy management,Industrial process automation
|
Measuring range |
-0.1kPa to 40 MPa (customizable) |
|
Accuracy |
±0.1% F.S. / ±0.075% F.S. |
|
Output signal |
4–20 mA |
|
Power supply |
12–36 VDC |
|
Process connection |
Threaded |
|
Ingress protection |
IP67 / IP68 optional |
|
Operating temperature |
-40℃ to +85℃ |
