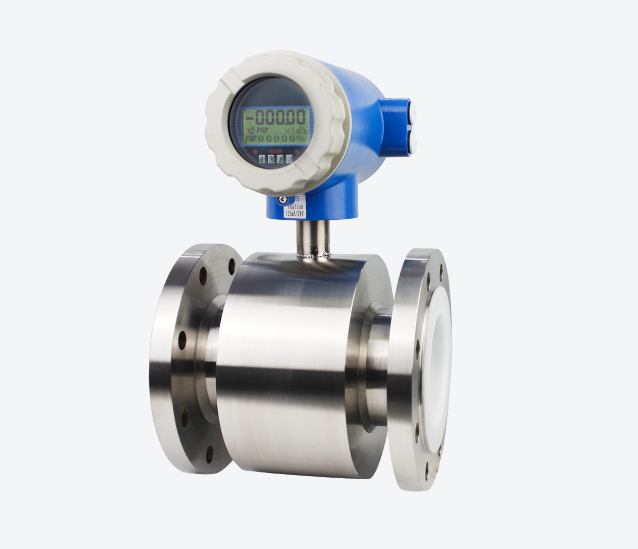

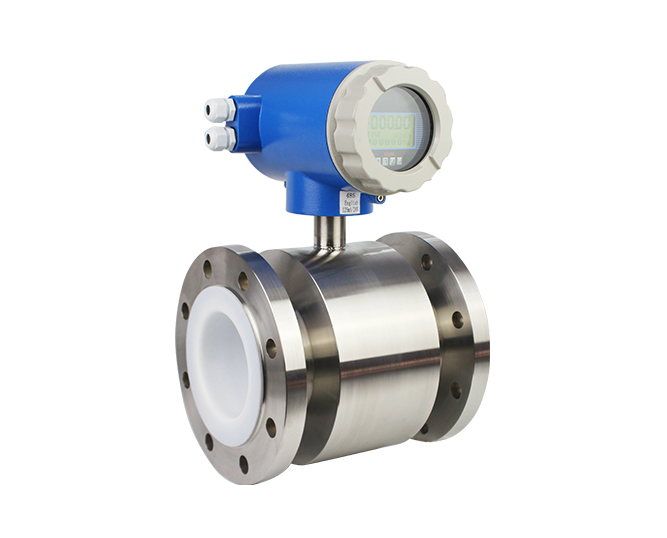

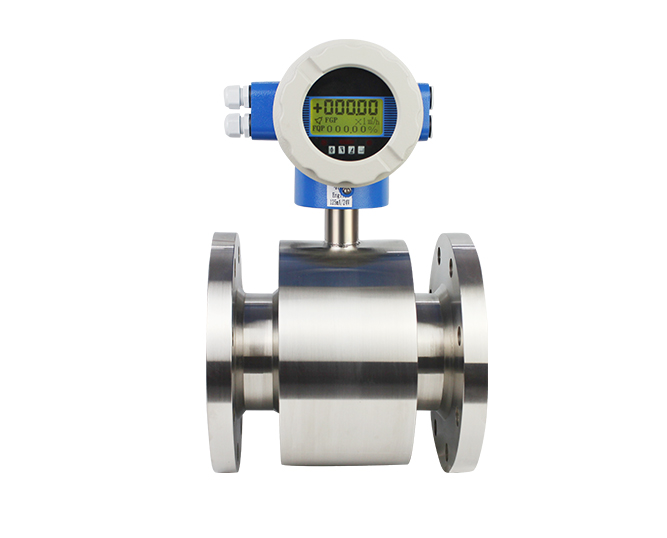

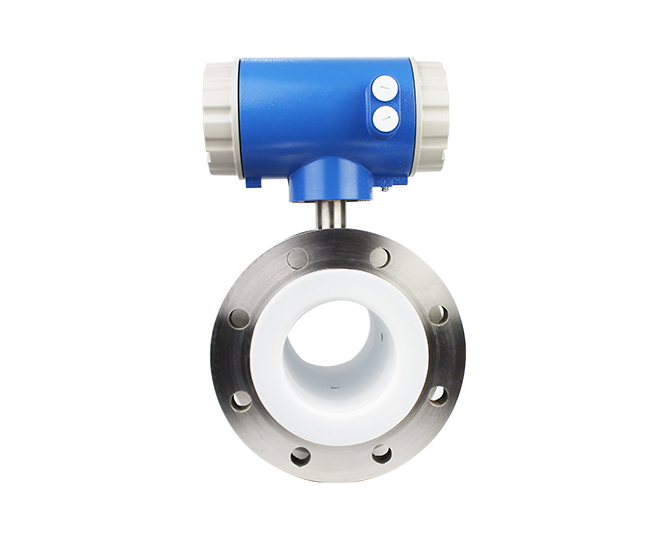

The corrosion-resistant electromagnetic flow meter is specially designed for the measurement of highly corrosive liquids, including strong acids, alkalis, and saline solutions. The meter is built with anti-corrosive liners such as PTFE, PFA, F46, or ceramic, and electrodes made of tantalum, Hastelloy, titanium, or platinum-iridium, ensuring long-term stability and reliability in harsh chemical environments.
1.Excellent Corrosion Resistance:
Customizable liner and electrode materials for strong acids, alkalis, and chemical solvents.2.High Measurement Reliability:
Stable operation unaffected by changes in conductivity (≥20 μS/cm).3.Multiple Output Signals:
Supports 4–20 mA, pulse, RS485 (Modbus), and HART communication protocols.4.Flexible Installation
Available in compact or remote types for indoor, outdoor, and hazardous area applications.5.High Protection Grade:
IP67/IP68 protection rating for outdoor or buried pipeline installations.6.Low Maintenance:
No moving mechanical parts, reducing wear and extending service life.
Acid and alkali solutions, brine, and process chemicals.
Measurement of sulfuric acid, hydrochloric acid, sodium hydroxide, hydrofluoric acid, etc.
Corrosive slurry and leachate measurement.
Acid and alkali wastewater discharge monitoring.
|
Configuration |
Options |
Description |
|
Nominal Diameter |
DN10 ~ DN600 |
Covers standard chemical pipeline sizes |
|
Liner Material |
PTFE, PFA, F46, Ceramic |
PTFE/PFA for most acids and alkalis, ceramic for high-temperature strong acids |
|
Electrode Material |
Tantalum, Hastelloy, Titanium, Platinum-Iridium, 316L |
Choose based on chemical compatibility |
|
Output Signal |
4–20 mA / Pulse / RS485 / HART |
Compatible with PLC/DCS systems |
|
Protection Grade |
IP65 / IP67 / IP68 |
Select according to installation site |
|
Power Supply |
AC220V / DC24V |
Standard industrial power options |
|
Installation Type |
Flange / Remote |
Remote type recommended for chemical applications |
|
Accuracy Class |
±0.5%R (Standard) / ±0.2%R (High Accuracy) |
For various industrial precision levels |
|
Parameter |
Typical Value |
Description |
|
Flow Velocity Range |
0.05 – 10 m/s |
Suitable for most liquid applications |
|
Accuracy |
±0.5%R / ±0.2%R |
High precision for chemical processes |
|
Temperature Range |
-20℃ ~ +150℃ (PTFE/PFA), higher for ceramic |
Depends on liner material |
|
Pressure Rating |
1.0 / 1.6 / 2.5 MPa |
Higher pressure available upon request |
|
Protection Grade |
IP65 / IP67 / IP68 |
For indoor, outdoor, or underground use |
|
Communication |
Pulse / 4–20 mA / RS485 / HART |
Industrial automation compatible |
|
Power Supply |
AC220V / DC24V |
Standard factory configuration |
