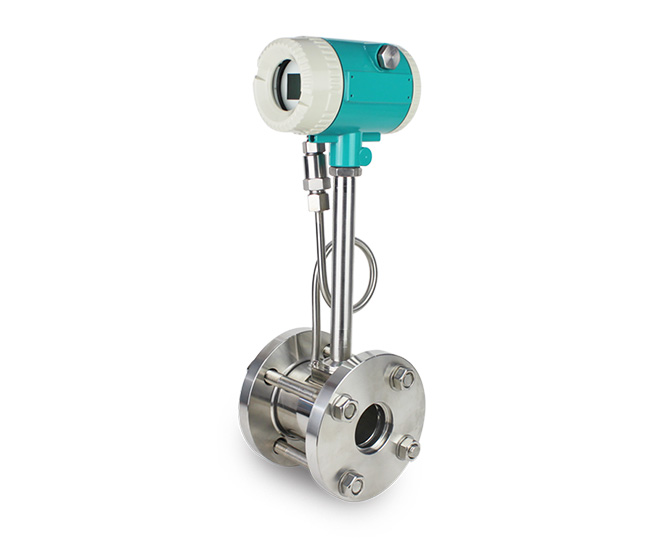

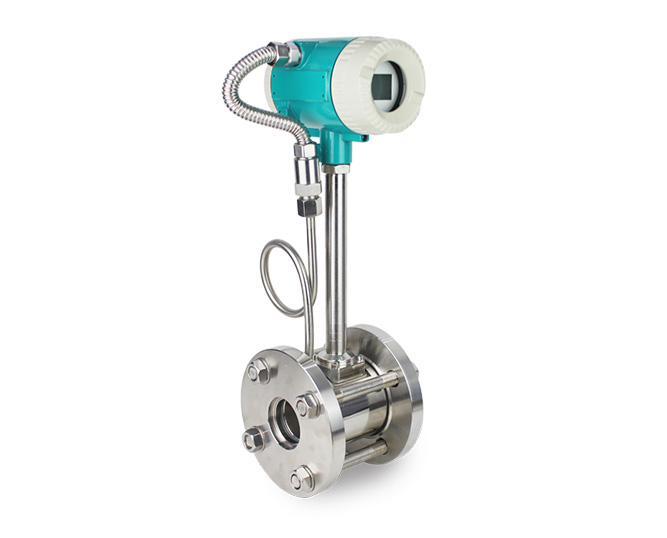

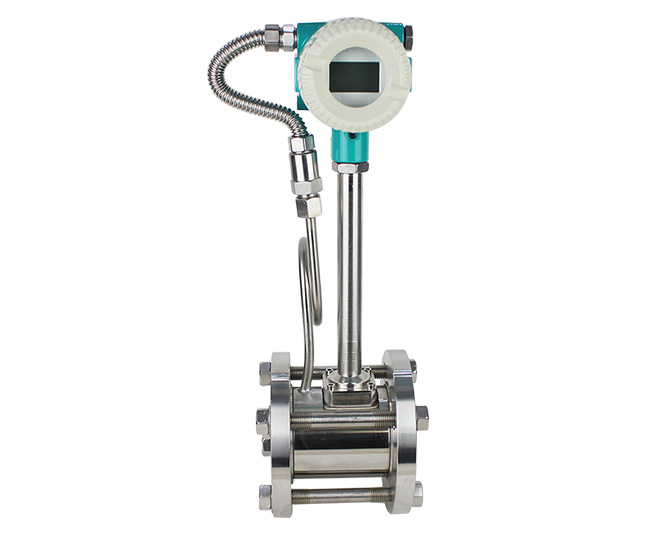

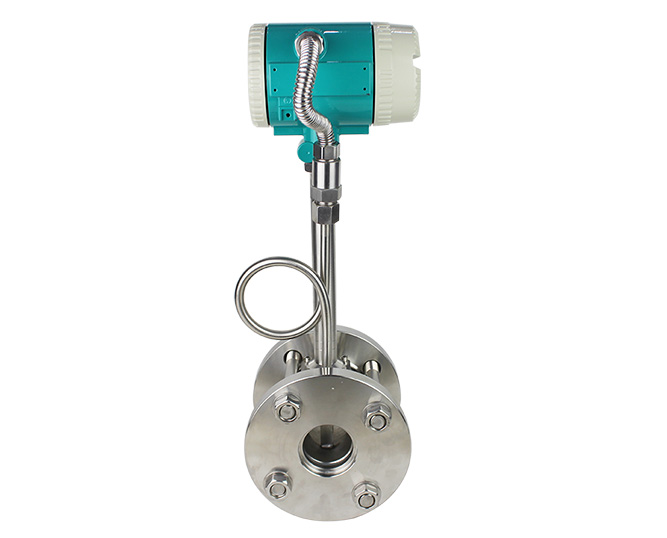

The Vortex Flowmeter with Temperature & Pressure Compensation is designed for accurate flow measurement of steam, compressed air, and gases where density changes significantly with operating conditions. By integrating high-precision temperature and pressure sensors, the flowmeter automatically compensates for variations in process conditions and directly outputs mass flow or standard volume flow. This makes it an ideal solution for energy management, cost allocation, and precise process control.
Integrated temperature & pressure compensation
automatic density correctionStandard volume flow output
High accuracy and stability
suitable for trade settlement and energy monitoringRobust and durable

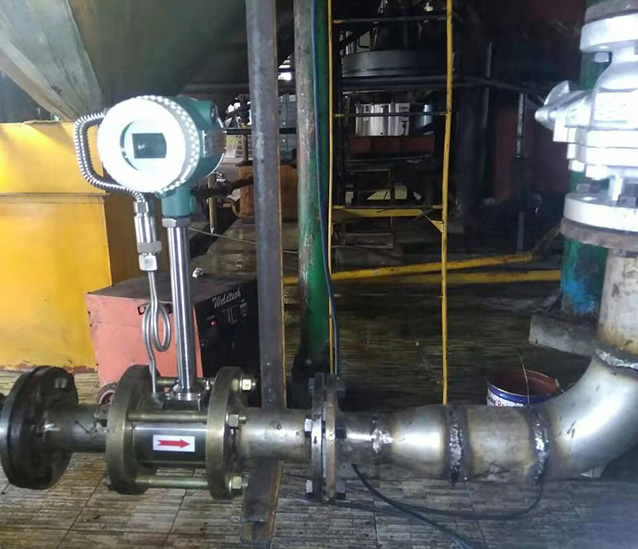

stainless-steel body, no moving partsFlexible installation
integral or remote display options
boiler steam, saturated and superheated steam
industrial air supply, pneumatic equipment monitoring
natural gas, nitrogen, oxygen, argon, etc.
utility metering, cost allocation, performance monitoring
power plants, petrochemical, metallurgy, food & beverage
|
Nominal diameter (DN) |
DN15 ~ DN1500 (≧300mm insert type structure) |
|
Accuracy |
±0.5%/±1.0% of reading (liquid), ±1.5% of reading (gas/steam) |
|
Medium |
Steam, gas, liquid |
|
Flow range |
1.5 ~ 150 m/s (depending on pipe size & medium) |
|
Pressure |
PN16, PN25, PN40 (higher ratings on request) |
|
Medium temperature |
40°C ~ 350°C (up to +420℃ for high-temp steam type) |
|
Linearity |
≦±1.5% |
|
Repeatability |
≦0.5%, ≦1.0% |
|
Output signal |
4-20 mA, Pulse, RS485/Modbus |
|
Communication |
RS485, HART, M-bus |
|
Power supply |
24V DC or lithium battery |
|
Display |
Instantaneous flow, totalized flow, temperature, pressure |
|
Installation |
flange clamp type (15mm ~ 300mm) Insert type (350 mm ~ 1500 mm) |
|
Protection grade |
IP65, IP67 |
|
Explosion proof type |
intrinsic safety type / explosion proof type |
|
Explosion proof grade |
iaII CT6, dIIBT4 |
|
Atmospheric pressure |
(86-106) Kpa |
|
Ambient |
temperature: -40°C ~ 55°C, humidity: 5% -90 % |
